The Single Operator and Workstation Continuous Monitor is designed to provide real-time monitoring of both operator grounding and work surface resistance. Equipped with audible and LED alarms, it immediately alerts users when resistance values exceed preset limits, grounding is disconnected, or system faults occur. Continuous monitoring helps prevent ESD risks, improve production reliability, and ensure safe operation in sensitive electronic manufacturing environments.
Specifications
| Feature | Specification |
| Model | SURPA-9202D |
| Monitoring Channels | 1 Operator (Wrist Strap) + 1 Worksurface (Mat) |
| Dimensions | 61 x 58 x 28 mm |
| Weight | 62g |
| Input Voltage | 9V - 12V DC (Regional AC/DC adapter included) |
| Response Time | < 0.1 seconds |
| Indicators | Bi-color LEDs (Green/Red) + 80dB Piezo Buzzer |
Products Details
Why Choose the SURPA-9202D?
Simultaneous Dual-Path Monitoring: Most monitors only check the person. The 9202D checks the Operator AND the Mat. If your mat's ground wire becomes loose, the "BENCH" alarm will alert you immediately.
Compact Footprint: At only 61mm wide, it fits perfectly under shelf brackets or on the corner of a workstation without obstructing the assembly area.
Instant Audible Warning: No need to constantly watch the lights. If a wrist strap is worn too loosely or a wire snaps, a loud buzzer sounds instantly, stopping a potential ESD event before it happens.
Strong Anti-Interference: Optimized circuitry prevents "false alarms" caused by electromagnetic interference from nearby soldering stations or power tools.
Compliance Ready: Designed to help your facility meet GB/T 15463-2018 and JJF(津)101-2023 requirements for continuous monitoring.
application
SMT/PCB Assembly: Ensuring manual solderers and inspectors are safely grounded during high-density board handling.
Mobile & Device Repair: Protecting sensitive ICs and screens during delicate disassembly and reassembly.
Laboratory & Calibration: Providing a stable, grounded environment for sensitive electronic measurements.
Cleanroom Manufacturing: A low-maintenance solution for controlled environments requiring strict static management.
FAQ
Q: What industries use ESD wrist strap testers?
A:They are widely used in semiconductor fabs, electronics assembly, PCB production, and cleanroom environments.
Q: Do you support bulk orders and wholesale supply?
A: Yes, we support bulk orders and wholesale supply with competitive pricing.
Q: What certifications does the ESD tester have?
A:Our products can meet international ESD control requirements and provide related quality documents.
Status Indicators
| Monitor Signal | Meaning | Required Action |
| 🟢 Solid Green | SYSTEM SAFE. Grounding is within spec. | Continue working normally. |
| 🔴 Flashing Red + Beep | OPEN CIRCUIT. Grounding is lost. | Tighten wrist strap or check ground wire. |
| No Light / No Sound | POWER LOSS. Unit is not receiving electricity. | Check AC adapter connection. |
Packing List
- SURPA-9202D Monitor Unit x1
- AC/DC Power Adapter x1 (US/EU/UK/AU plugs available)

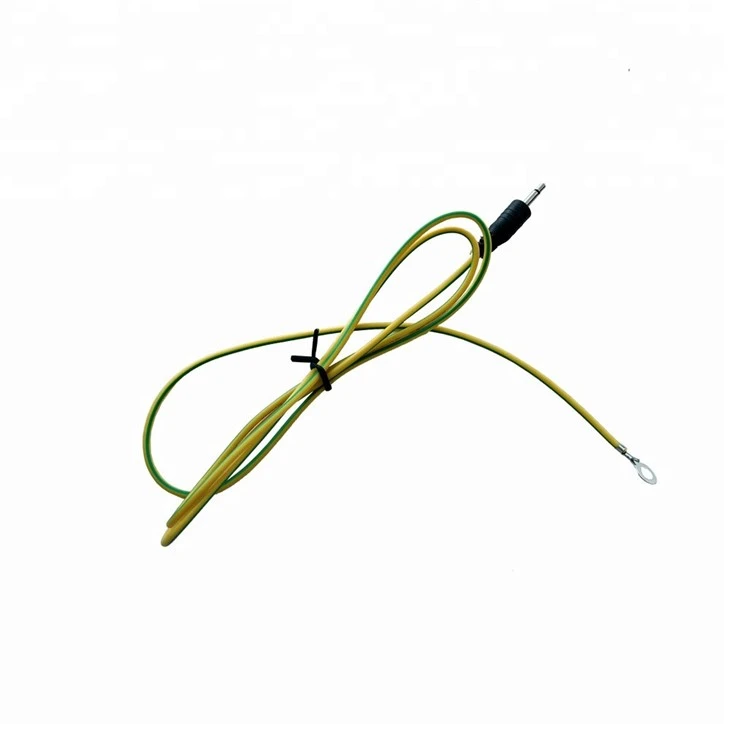

- Yellow/Green System Grounding Wire x1
- Screws x 2
- Instruction Manual x1
