Products Description

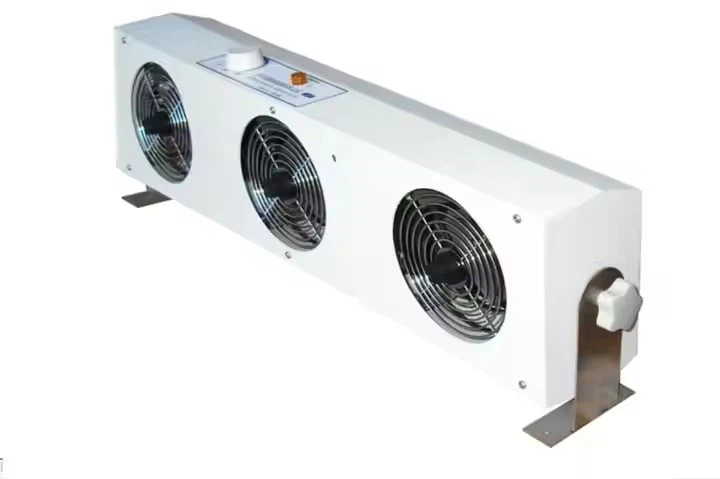

SL-003 suspended ion fan has small fans to provide wind power. The wind power can be adjusted in a large range through the speed regulating switch.When the surface of the object is negatively charged, it will attract the positive charge in the air stream, when the surface of the object is positively charged, it will attract the negative charge in the air stream, so that the static electricity on the surface of the object is neutralized, to achieve the purpose of eliminating static electricity. Built-in static electric acupuncture cleaning brush ,Coverage area is large Simplify the maintenance work , Efficient and stable, The operator feel comfortable can cover the whole workbench airflow size can be adjusted, High pressure ionization display lamp.
Products Specifications
|

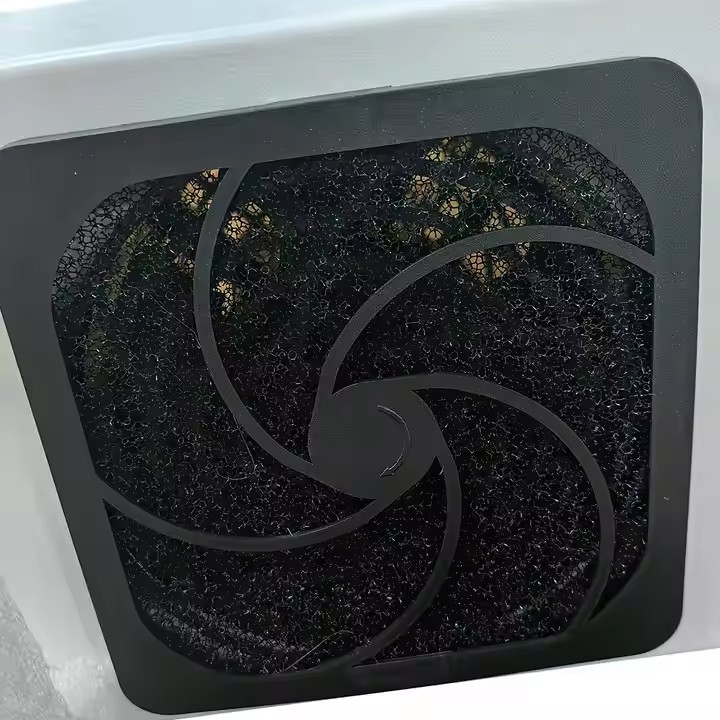

3 Fan Anti Static Industrial Lab Ion Fan Electrostatic Eliminator Overhead Ionizer With filter |
|
|
Model |
SL-003 |
|
Operating Voltage |
110V/60Hz or 220V/50Hz |
|
Current Consumption |
≤1,25 Amp of≤0.62Amp |
|
Operating temperature |
32 ° F (0 ℃)~122 ° F (60 ℃) |
|
Ozone level |
0.03PM (measured 6 inches in front of the fan) |
|
Noise |
Min 50dB Max 90dB |
|
Air Volume |
120-330CFM |
|
Air Coverage |
40cmx120cm |
|
Outer box |
sheet metal surface electrostatic spraying |
|
Size |
1100mm (L) x125mm (W) X170mm (H) |
|
Ion balance |
Ov ± 10v |
|
Operating Voltage: 110V/220V Testing Voltage: 1kV to 100V Temperature: 22℃ |
||||
|
Distance |
300mm |
600mm |
900mm |
1200mm |
|
Left 300mm |
1.8s |
2.5s |
5.2s |
8.6s |
|
Center |
1.2s |
2.2s |
4.3s |
7.5s |
|
Right 300mm |
1.7s |
2.3s |
4.8s |
8.3s |
The ion balance voltage and electrostatic elimination time comply with ESD standards, and the electrostatic elimination time is measured from the test voltage of 1000v~100v.
*The test instrument uses ME268A electrostatic comprehensive tester.
*Test data will vary due to changes in temperature and humidity of the surrounding air.
Products Details
Sl-003 suspended ion fan has small fans to provide wind power. The wind power can be adjusted in a large range through the speed regulating switch.
The fan can produce a large amount of air flow with positive and negative charges, so as to neutralize the charges on the object.
When the surface of an object is negatively charged, it will attract a positive charge in the airflow. When the object surface is positively charged, it will attract the negative charge in the air flow, so as to neutralize the static electricity on the object surface and achieve the purpose of eliminating static electricity.
suspended ion fan Sizes for option
Double Ion Fan: 1100mm: 600 (L) X170 (W) X125 (H) mm
Three Ion Fan: 1100mm: 600 (L) X170 (W) X125 (H) mm
Four Ion Fan: 1100mm: 1100 (L) X170 (W) X125 (H) mm
Five Ion Fan:1100mm: 1100 (L) X170 (W) X125 (H) mm
Weight: 7/8/11/12kg
Ion balance: ≤ 10V
Test voltage: 1kv-100v
Ambient temperature: 22 ° C humidity ≤ 60%
Neutralization time: positive 1.1 seconds, negative 1.2 seconds at 300 mm
Residual voltage: 300mm, positive and negative ≤ 10V
Applications
Hard disk manufacturing, pharmaceutical manufacturing assembly lines, electronic production and packaging, LED assembly lines, semiconductor assembly lines, microprocessors, etc.
warranty and service
We are strictly adheres to the tenets of product quality first, credit first, and customer first, and implements the following commitments for DR Scheider.pc brand products
1.Warranty period
The warranty period of all products sold by the company is one year, and the company will repair the quality problems caused by the product's own parts, materials and craftsmanship within one year from the date of sale.
2.Service after the warranty period
All products sold by the company are still responsible for labor-free repairs to the products after the warranty period to protect the interests of customers.
Hot Tags: sl-003 ion fan suspension type, China sl-003 ion fan suspension type manufacturers, suppliers, factory
